Duct Access Doors are designed to provide efficient and secure service access to critical areas in rectangular metal ducts for a wide range of commercial, industrial, institutional and residential applications. Offering economical, galvanized steel construction, our duct access doors are an excellent choice for locations where HVAC access is required. Perfect for both new and retrofit building projects, our duct doors enable easy access to dampers and other components in heating, air conditioning and other building ductwork. We have been supplying our access doors to America, Canada, Australia and other countries.
Duct access door
Product: Access door Door: 24 gauge galvanized steel, double panel Frame: 24 gauge galvanized steel Insulation: Door panel filled with 1" fiberglass insulation Gasketing: 1/8" thick by 1/2" wide closed cell neoprene gasketing between door and frame Latch: Self tightening, hand operated
Flush access door
Product: Access door Door: Formed door panel with multiple bends for added strength, flanged on four sides, Integral perforated taping bead adds rigidity Finish: 5 stage iron phosphate preparation with white baked-on polyester powder coat on door panel. Frame to be mill finish
Hinged access door
Product: Access door Door: 24 gauge Insulation: Door panel filled with 2" fiberglass insulation (7.7 R factor), compressed into 1". Gasketing: 1/8" thick by 1/2" wide closed cell neoprene gasketing between door and frame and also between frame and duct Latch:

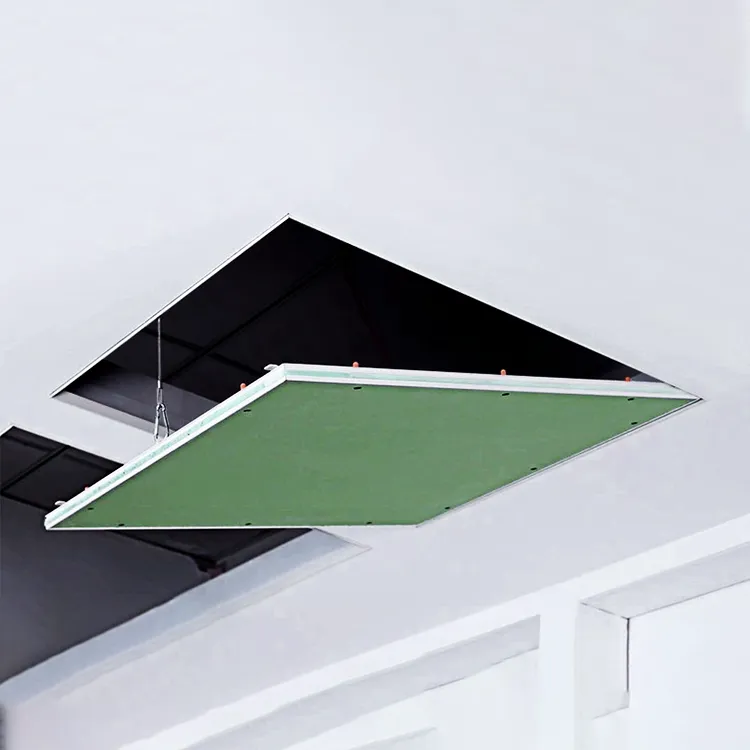

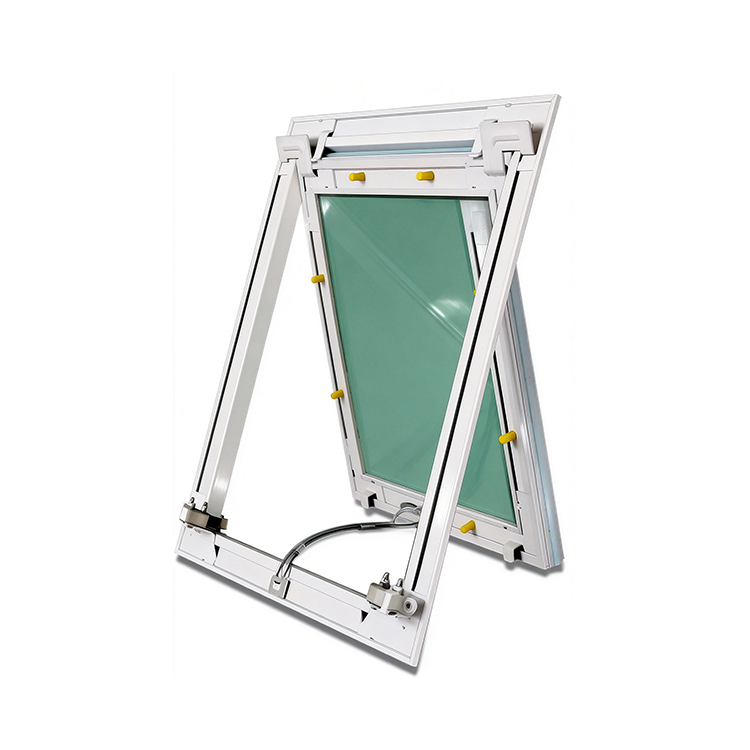

Aluminum access panel
Product: Access door Door: 0.08”Aluminum Frame: Aluminum extrusion recessed to provide similar edge to drywall bead to allow for finishing of wall or ceiling surface. Finish: Mill finish Hinge: Spring loaded hinge pin allows door panel to open to 90 degrees,
Insulated access door
Product: Access door Door: 24 gauge galvanized steel panels Frame: 24 gauge with 5/8" notched knock over tabs Insulation: 2" fiberglass insulation Gasketing: 1/8" thick by 1/2" wide closed cell neoprene gasketing between door and frame and also between frame and duct Latch: Cam latches. Finish: Mill finish Material: Galvanized steel
Flush access door
Product: Access door Door: Flush to frame with reinforced edges Frame: Knock over mounting tabs provided on 6x6, 8x8, 10x10 and 12x12 Finish: 5 Stage iron phosphate preparation with prime coat of White alkyd baked-on enamel Material: 18 gauge steel door and frame Hinge: Concealed Hinge Pin Standard
Universal flush access door
Product: Universal flush access door Door: Beveled edge door panel covers hinge and frame Frame: 1/2” wide outside flange - 1 1/2” deep mounting frame Latch: Stainless steel screwdriver operated cam latch Finish: White alkyd baking enamel Material: 16 gauge steel door and frame
Galvanized access door
Product: Access door Door: 24 gauge galvanized steel, double panel Frame: 24 gauge galvanized steel Insulation: Door panel filled with 1" fiberglass insulation Gasketing: 1/8" thick by 1/2" wide closed cell
Flanged access door
Product: Access door Door: 24 gauge galvanized steel panels Frame: 24 gauge with 5/8" notched knock over tabs Insulation: 2" fiberglass insulation Gasketing: 1/8" thick by 1/2" wide closed cell neoprene gasketing between door and frame and also
