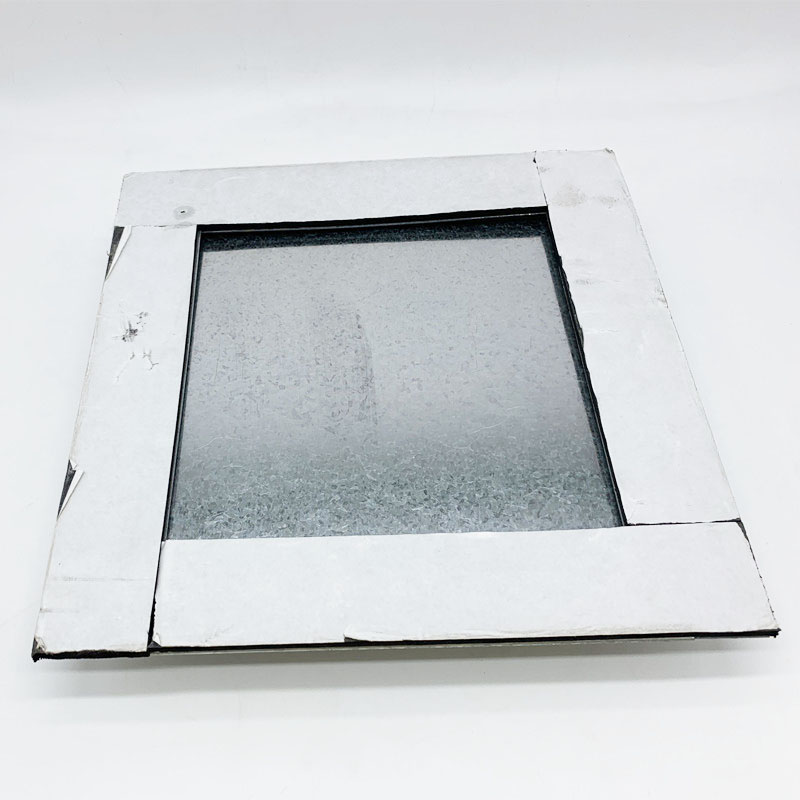

Duct access door
Item No. RC-HDS
Product: Access door Door: 24 gauge galvanized steel, double panel Frame: 24 gauge galvanized steel Insulation: Door panel filled with 1" fiberglass insulation Gasketing: 1/8" thick by 1/2" wide closed cell neoprene gasketing between door and frame Latch: Self tightening, hand operated
- Product: Access door
- Door: 24 gauge galvanized steel, double panel
- Frame: 24 gauge galvanized steel
- Insulation: Door panel filled with 1" fiberglass insulation
- Gasketing: 1/8" thick by 1/2" wide closed cell neoprene gasketing between door and frame
- Latch: Self tightening, hand operated cam latches
- Hardware: Hex head sheet metal screws
- Hinge: Continuous aluminum piano hinge
Parameter
| Item code | size | Weight(kg) | |
| inch | mm | ||
| RC-HDS | 6X6 | 150x150 | 0.67 |
| RC-HDS | 8x8 | 200x200 | 0.97 |
| RC-HDS | 10x10 | 250x250 | 1.32 |
| RC-HDS | 12X12 | 300x300 | 1.72 |
| RC-HDS | 12x18 | 300x450 | 2.41 |
| RC-HDS | 14X14 | 350x350 | 2.16 |
| RC-HDS | 16X16 | 400x400 | 2.71 |
| RC-HDS | 18X18 | 450x450 | 3.27 |
| RC-HDS | 20X20 | 500x500 | 3.77 |
| RC-HDS | 24X24 | 600x600 | 5.09 |
