Item Number:RC-1002

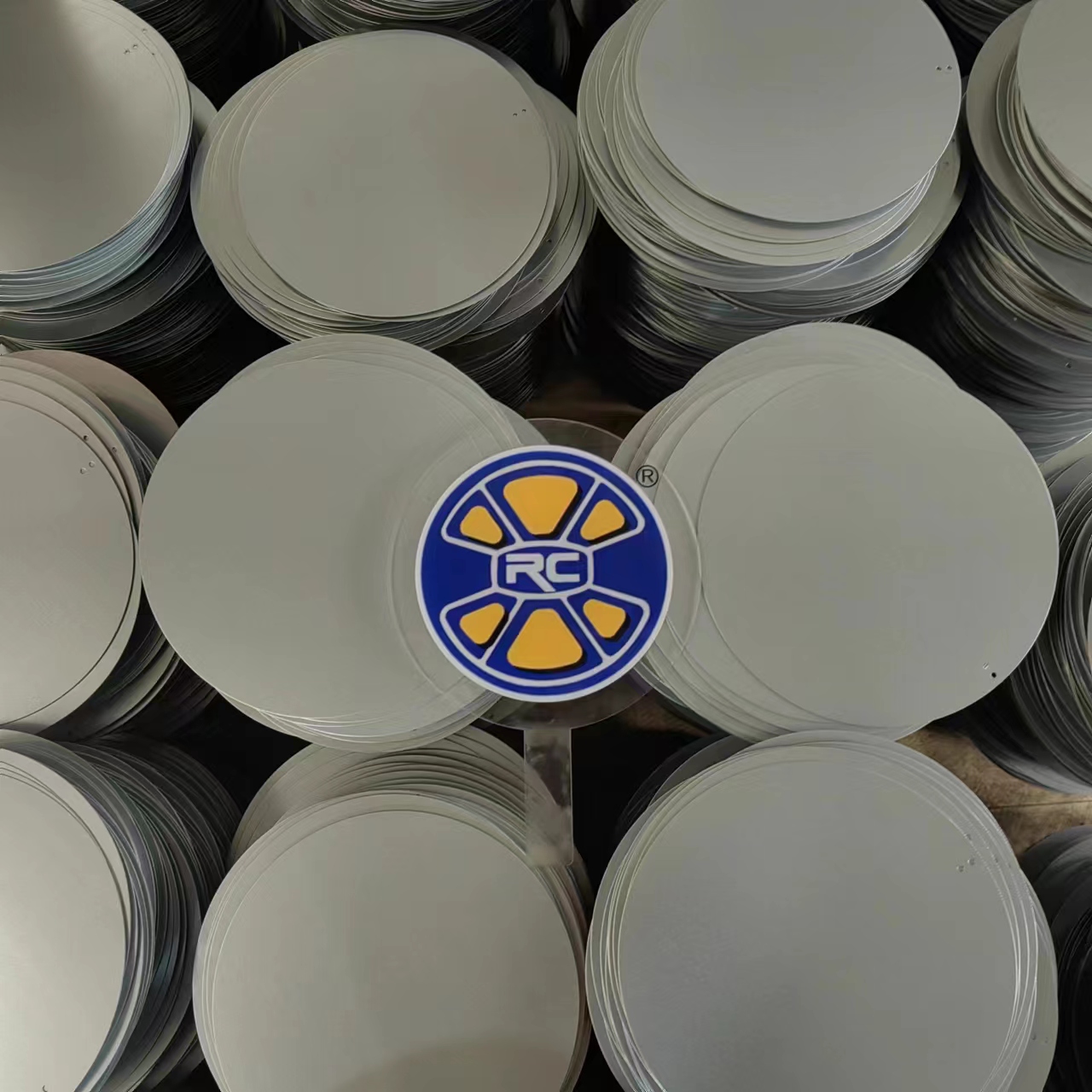

Jiffy Damper Blades are designed to help regulate the volume of air moving through duct systems. They can be used as positive shutoffs, and can also be used for automatic control in low-leakage HVAC systems, or systems requiring modulating airflow. Control dampers are typically installed inside ductwork of low to medium airflow velocity and static pressure capabilities.

  • Product : Damper blade
  • Material: Galvanized steel
  • Size : 4”-20”(4”, 5”, 6”, 7”, 8”, 9”, 10”, 12”, 14”, 16”, 18”, 20”)
  • Thickness: 20GA,22GA,24GA,26GA,28GA
  • Configuration: Spring loaded bearing, stamped bearing, stud, wing nut, washer, handle
  • Shape: Round
  • Technical: Stamping
  • Application : Used in the round ductwork system for adjusting supply or return air volume
Contact Us Now

Parameter

HVAC Duct Accessories-Damper Opention Sheet
Item picture Item name Item no Size Diameter(smaller) Thickness(GA) Material Assemblies
0.25'' 0.375'' 0.5'' 28 26 24 22 20 18 Galvanized steel Aluminum  Stainless steel  Two spring bearings One spring bearing and one solid bearing One spring bearing and one stud Square alumnium rod
　 Jiffy damper blade RCD4 4'' √ × × × √ √ × × × √ √ √ × √ √ ×
RCD5 5'' √ × × × √ √ × × × √ √ √ √ √ √ ×
RCD6 6'' √ √ √ × √ √ × × × √ √ √ √ √ √ ×
RCD7 7'' √ × × × √ √ × × × √ √ √ √ √ √ ×
RCD8 8'' √ √ √ × √ √ × × × √ √ √ √ √ √ ×
RCD9 9'' √ × × × √ √ × × × √ √ √ √ √ √ ×
RCD10 10'' √ √ √ × √ √ × × × √ √ √ √ √ √ ×
RCD12 12'' √ √ √ × √ √ × × × √ √ √ √ √ √ ×
RCD14 14'' √ × √ × √ √ × × × √ √ √ √ √ √ ×
RCD16 16'' √ × √ × √ √ × × × √ √ √ √ √ √ ×
RCD18 18'' √ × × × √ √ × × × √ √ √ √ √ √ ×
RCD20 20'' √ × × × √ √ × × × √ √ √ √ √ √ ×
Oval damper  RCV01 145*215mm × × × √ √ √ × × × √ √ √ √ √ √ ×
RCV02 145*295mm × × × √ √ √ × × × √ √ √ √ √ √ ×
RCV03 195*265mm × × × √ √ √ × × × √ √ √ √ √ √ ×
RCV04 195*345mm × × × √ √ √ × × × √ √ √ √ √ √ ×
RCV05 245*315mm × × × √ √ √ × × × √ √ √ √ √ √ ×
damper kits washer √ handle √ wing nut  √ × × All of the above dampers can assemble with washer, handle and wing nut.
Heavy duty damper with Al rod  RCH6 6'' √ × × × × × √ √ × √ √ √ × × × √
RCH8 8'' √ × × × × × √ √ × √ √ √ × × × √
RCH10 10'' √ × × × × × √ √ × √ √ √ × × × √
RCH12 12'' √ × × × × × √ √ × √ √ √ × × × √
RCH14 14'' √ × × × × × √ √ × √ √ √ × × × √
RCH16 16'' √ × × × × × √ √ × √ √ √ × × × √
OEM/ODM Size  √ Thickness  √ Material  √ Shape  √ Logo √ × × All of the dampers can accept OEM/ODM for the size, thickness, material, shape or logo.
